Product Dimensions 40"h x 26"w x 22.5"d

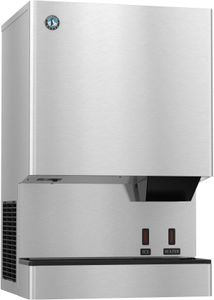

The DCM-300BAH-OS is capable of producing approximately 321 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 40 lbs of ice* at a time. This Air-cooled icemaker has an LED remote sensor for hands-free operation with opaque containers. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself and it is Protected by H-GUARD Plus Antimicrobial Agent. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft average density of ice.Read More
Up to 321 lbs of ice produced per 24 hours
Up to 40 lbs of built-in storage capacity (1.3ft)
Produces mini cubelet nugget-style ice
Durable stainless steel exterior
Place on countertop or optional stand: SD-450, SD-500
LED remote sensor for hands-free operation with opaque containers
CleanCycle12™ – Every 12 hrs, it performs 15 min purge to clean itself
Protected by H-GUARD Plus Antimicrobial Agent
R-404A refrigerant (15.9 oz. / 450 g)
Heat Rejection: BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
10.25 amps (20 Amp Max fuse)
7.6 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts warranty on Compressor, air-cooled condenser coil
General Specs | |
Depth (in.) | 22.5 |
Height (in.) | 40 |
Ice Storage Capacity (lbs.) | 40 |
Color | Stainless Steel |
Installation Type | Built-In |
Overall Height (in.) | 40 |
Width (in.) | 26 |
Manufacturer Warranty | 3 Year Parts & Labor |
Appliance Fit Width (in.) | 26 |
Color Finish Name | Stainless Steel |
Voltage | 115 |
Number Of Possible Ice Cube Shapes | 1 |
Ice Type | Nugget |
Door Panel Type | Solid |
Operating Limits | |
Ambient Temp Range | 45 - 100°F |
Water Temp Range | 45 - 90°F |
Water Pressure | 10 - 113 PSIG |
Voltage Range | 104 - 127V |
Plumbing | |
Icemaker Water Supply Line | Minimum 1/4” Nominal ID Copper Water Tubing or Equivalent |
Icemaker Drain Line | Minimum 3/4” Nominal ID Hard Pipe or Equivalent |
