Product Dimensions 31.5"h x 14.8"w x 25.75"d

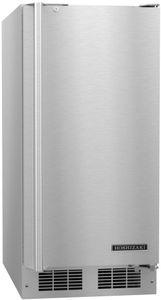

The HR15A is a 15" undercounter refrigerator with a lockable stainless door at an ADA compliant height that ensures that all of your perishable goods are stored safely and securely. This undercounter refrigerator is UL approved for outdoor use, allowing it to sit outdoors on the patio, by the pool, or on your porch. The HR15A is similarly sized to our popular 15 inch wide undercounter icemakers (AM-50 & C-80 series), which allows you the convenience of ice and refrigeration all within 30 inches!Read More
The HR15A is a 15″ undercounter refrigerator with a lockable stainless door at an ADA compliant height that ensures that all of your perishable goods are stored safely and securely. This undercounter refrigerator is UL approved for outdoor use, allowing it to sit outdoors on the patio, by the pool, or on your porch. The HR15A is similarly sized to our popular 15 inch wide undercounter icemakers (AM-50 & C-80 series), which allows you the convenience of ice and refrigeration all within 30 inches! The stainless steel exterior (front, sides, top) and a stainless steel interior boasts a roomy net capacity of 2.54 cubic feet. The stainless steel interior with led lights including (2) stainless steel slide out shelves adjustable in 1.41″ increments on anodized aluminum supports. Simple Electronic controls with LED temperature display, insulated with environmentally friendly cyclopentane insulation, and cooled with earth-friendly R-600a refrigerant means the HR15A operates at the peak of efficiency. In fact, the HR15A is ENERGY STAR® qualified. This compact single section refrigerator uses a front vent airflow, so it requires no clearance for side air circulation. So it can fit seamlessly into tight areas and comes (4) 1″ built in adjustable legs are standard. Shelf capacity: approx. (18) 20oz. bottles, Electrical: 115v/60/1, 9 ft. cord and plug. The unit is UL EPH Listed, ADA Compliant, ADA Compliant, ENERGY STAR® Qualified and includes a Five Years compressor warranty – Three Years parts and labor warranty.
Net capacity of 2.54 cubic feet
UL approved for outdoor use
ADA compliant height (Under 32″ tall)
Stainless steel exterior (front, sides, top) and a stainless steel interior
Field reversible door with lock (no kit req’d)
full door length stainless steel door handle
Stainless steel interior with LED lights
Insulated with environmentally friendly cyclopentane insulation
(2) stainless steel slide out shelves adjustable in 1.41″ increments on anodized aluminum supports
Electronic controls with LED temperature display R-600a refrigerant
(4) 1″ Built in adjustable legs are standard
Automatic time-initiated heated defrost
Shelf capacity: approx. (18) 20oz. bottles
Nominal Compres. of 222 BTU/hr at 1/10 HP
115v/60/1, 9 ft. cord and plug
Shipping Crate: 30.75″ L x 18″ D x 37.75″ H at 110 lbs
Five Years compressor warranty, Three Years parts and labor warranty
General Specs | |
Width (in.) | 14.8 |
Depth (in.) | 25.75 |
Height (in.) | 31.5 |
Handle Type | Tubular |
Total Capacity (cu. ft.) | 2.5 |
Refrigerator Capacity (cu. ft.) | 2.54 |
Color | Stainless Steel |
Manufacturer Warranty | 3 Year Parts & Labor |
Fingerprint Resistant Finish | No |
Door Panel Type | Solid |
Appliance Fit Width (in.) | 15 |
Ice Maker | No |
Door Swing Option | Reversible Hinge |
Depth Type | Standard Depth |
Color Finish Name | Stainless Steel |
Ice/Water Dispenser | No |
Wifi Connectivity | No |
Number of Doors | 1 |
ENERGY STAR Certified | Yes |
Commercial Use Approved | No |
Installation Type | Built-In |
ADA Compliant | Yes |
Voltage | 115 |
Refrigeration General Features | Reversible Door Hinge |
Overall Height (in.) | 31.5 |
Dimensions / Capacity | |
Depth with Door Open at 90º | 37.25” |
Adjustable Shelves | 2 |
Shelf Dimensions (W x D) | (2) 10” x 20” |
Crated Shipping Dimensions (LxWxH) | 30.6” x 18.75” x 37” |
Electrical / Refrigeration | |
HACR Breaker | 15.0 Amps |
Electrical Connection (NEMA) | 5-15P |
Voltage Range | 104-127 |
Ambient Temp. Range | 45° to 90°F |
Control Setpoint Range | 28° to 40°F |
Amperage | 0.9 |
Energy Consumption (kWh/day) @ASHRAE | 0.54 |
Heat Rejection (BTU/Hr.) @NSF | 145 |
Approx. Nominal Compres. BTU/HR (HP) | 222 (1/10HP) |
Refrigerant (charge amount, oz.) | R600a (0.53 oz.) |
