Product Dimensions 39"h x 24"w x 26"d

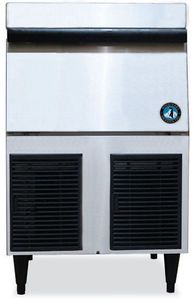

The F-330BAJ-C is capable of producing approximately 288 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Self Contained, Built in Storage Bin icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-330BAJ-C requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection that is hard-wired at the installation site. Front in, front out airflow. Please consult the Specification Sheet for additional details.Read More
Produces small cubelet nugget-style ice
Durable stainless steel exterior
Front in, front out airflow
2 second rinse every hour to remove sediment
Advanced CleanCycle24™ design
Protected by H-GUARD Plus Antimicrobial Agent
R-404A refrigerant (7.1 oz. / 200 g)
Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
General Specs | |
Depth (in.) | 26 |
Height (in.) | 39 |
Ice Storage Capacity (lbs.) | 80 |
Color | Stainless Steel |
Installation Type | Built-In |
Overall Height (in.) | 39 |
Width (in.) | 24 |
Manufacturer Warranty | 3 Year Parts & Labor |
Appliance Fit Width (in.) | 24 |
Color Finish Name | Stainless Steel |
Product Weight (lbs.) | 148 |
Voltage | 115 |
Number Of Possible Ice Cube Shapes | 1 |
Ice Type | Nugget |
Door Panel Type | Solid |
Overview | |
Ice production | 332 lbs per 24 hours |
Built-in storage capacity | 80 lbs |
Heat Rejection | 3400 BTU/hr |
Ambient temperature range | 45 – 100°F |
Water temperature range | 45 – 95°F |
Water pressure | 10 – 113psig |
Voltage range | 104 – 127V |
Amps | 7.1 amps (15 Amp Max fuse) |
