Product Dimensions 39"h x 23.75"w x 28"d

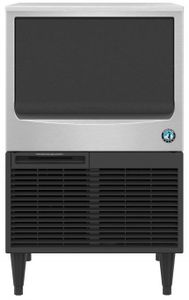

The KM-161BAJ is capable of producing approximately 163 lbs of crescent cubed ice. This Undercounter Air-cooled, Built in Storage Bin icemaker stores up to 78 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-161BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. Replaces KM-160BAJ.Read More
Up to 163 lbs of ice produced per 24 hours
Up to 78 lbs of built-in storage capacity (2.6ft)
Produces crescent shaped ice cubes
Slide in door with durable stainless steel exterior
Front in, front out airflow
EverCheck™ alert system
CycleSaver™ design
Slide in door, ice bin opening is ADA compliant
R-134a refrigerant (7.4 oz. / 210 g)
Heat Rejection:3050 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
7.1 amps (15 Amp Max fuse)
8.6 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine
Five Years: Parts & Labor warranty on evaporator
General Specs | |
Depth (in.) | 28 |
Height (in.) | 39 |
Ice Storage Capacity (lbs.) | 78 |
Color | Black |
Installation Type | Built-In |
Overall Height (in.) | 39 |
Width (in.) | 23.75 |
Manufacturer Warranty | 3 Year Parts & Labor |
Appliance Fit Width (in.) | 24 |
Color Finish Name | Black with Stainless Steel |
Product Weight (lbs.) | 126 |
Voltage | 115 |
Number Of Possible Ice Cube Shapes | 1 |
Ice Type | Crescent |
Door Panel Type | Solid |
Operating Limits | |
Ambient Temp Range | 45 - 100°F |
Water Temp Range | 45 - 90°F |
Water Pressure | 10 - 113 PSIG |
Voltage Range | 104 - 127V |
Plumbing | |
Icemaker Water Supply Line | Minimum 1/4” Nominal ID Copper Water Tubing or Equivalent |
Icemaker Drain Line | Minimum 3/4” Nominal ID Hard Pipe or Equivalent |
