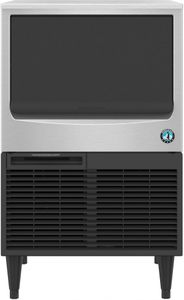

Hoshizaki 24" 125 lb. Black with Stainless Steel Undercounter Crescent Cuber Icemaker

Model #:

KM-116BAJ

Model #: KM-116BAJ

384216

Hoshizaki

$5,540.00

At a Glance

Product Dimensions 39"h x 23.75"w x 24"d

The KM-116BAJ is capable of producing approximately 125 lbs of crescent cubed ice. This Undercounter Air-cooled, Built in Storage Bin icemaker stores up to 53 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-116BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. Replaces KM-115BAJ.Read More

$5,540.00

What We Offer

Protect Your Purchase

None Selected

Services

None Selected

You Might Also Need

None Selected

Request More Info

Get to know this product.

Product Overview

Product Overview

Up to 125 lbs of ice produced per 24 hours

Up to 53 lbs of built-in storage capacity (1.8ft)

Produces crescent shaped ice cubes

Slide in door with durable stainless steel exterior

Front in, front out airflow

EverCheck™ alert system

CycleSaver™ design

HS-5061 drain pump assembly, sold separately

R-134a refrigerant (7.8 oz. / 221 g)

Heat Rejection:2100 BTU/hr

Ambient temperature range: 45 – 100°F

Water temperature range: 45 – 90°F

Water pressure: 10 – 113psig

Voltage range: 104 – 127V

5.5 amps (15 Amp Max fuse)

8.1 kwh/100 lbs.@ 90/70

Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug

Three Years: Parts & Labor warranty on entire machine

Five Years: Parts & Labor warranty on evaporator

Useful Documents

Instruction Manual

Specifications

General Specs
Depth (in.)	24
Height (in.)	39
Ice Storage Capacity (lbs.)	53
Color	Black
Installation Type	Built-In
Overall Height (in.)	39
Width (in.)	23.75
Manufacturer Warranty	3 Year Parts & Labor
Appliance Fit Width (in.)	24
Color Finish Name	Black with Stainless Steel
Product Weight (lbs.)	111
Voltage	115
Number Of Possible Ice Cube Shapes	1
Ice Type	Crescent
Door Panel Type	Solid
Operating Limits
Ambient Temp Range	45 - 100°F
Water Temp Range	45 - 90°F
Water Pressure	10 - 113 PSIG
Voltage Range	104 - 127V
Plumbing
Icemaker Water Supply Line	Minimum 1/4” Nominal ID Copper Water Tubing or Equivalent
Icemaker Drain Line	Minimum 3/4” Nominal ID Hard Pipe or Equivalent
