Product Dimensions 31.5"h x 14.88"w x 22.63"d

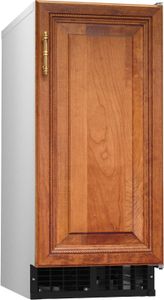

This compact undercounter Cubelet Icemaker is the perfect addition to any hotel suite, office breakroom, or kitchen. The C-80BAJ-ADDS is capable of producing approximately 80 lbs of Cubelet style ice cubes per day, and the built-in storage bin will hold up to 22 lbs of ice at a time. The Undercounter design is less than 32? tall, ADA compliant. The Air-cooled design also features a Front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included. Replaces C-101BAH-ADDS. *CUSTOM PANEL & HANDLE SOLD SEPARATELY*Read More
Produces mini cubelet nugget-style ice
Undercounter design is less than 32″ tall, ADA compliant
Front in, front out airflow
UL approved for outdoor use
Swing style field reversable door
(-DS) Accommodates custom cabinet door (not included), DS door reversal kit (HS-0229)
Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Two Years: Parts & Labor warranty on entire machine.
One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.
General Specs | |
Depth (in.) | 22.63 |
Height (in.) | 31.5 |
Ice Storage Capacity (lbs.) | 22 |
Color | Custom |
Installation Type | Built-In |
Overall Height (in.) | 31.5 |
Width (in.) | 14.88 |
Manufacturer Warranty | 2 Year Parts & Labor |
Outdoor Approved | Yes |
Appliance Fit Width (in.) | 15 |
Color Finish Name | Custom |
Product Weight (lbs.) | 118 |
Voltage | 115 |
Number Of Possible Ice Cube Shapes | 1 |
Ice Type | Nugget |
Door Panel Type | Panel |
Overview | |
Ice production | 80 lbs per 24 hours |
Built-in storage capacity | 22 lbs |
Heat Rejection | 1850 BTU/hr |
Ambient temperature range | 45 – 100°F |
Water temperature range | 45 – 95°F |
Water pressure | 7 – 113psig |
Voltage range | 104 – 127V |
Amps | 4 amps (15 Amp Max fuse) |
ADA Compliant Height | Yes |
